Grazing occultation by the Earthmoon in daylight
SAO 98967 Regulus = alpha Leonis +1.4mag

Sunday, 07 October 2007 at 05h45 UT

Important note

This graze will be the brightest until the year 2015. One day after the business meeting 2007 IOTA/ES invites to an observation of this grazing occultation on October 07, 2007 in Hannover. Here you can find the Official invitation to the observation in PDF format.

Detailed data of grazing star occultation

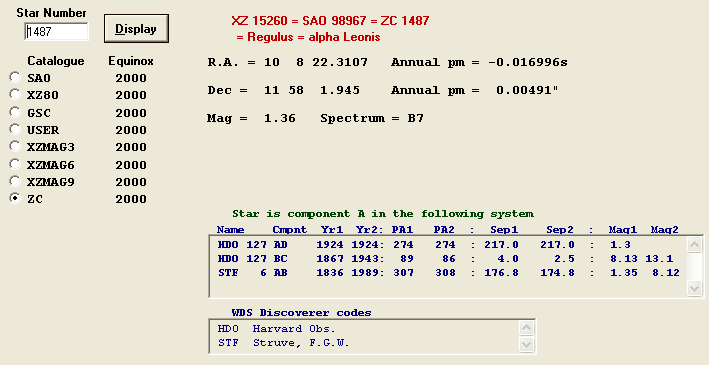

about occulted star
Moon drawing
General view

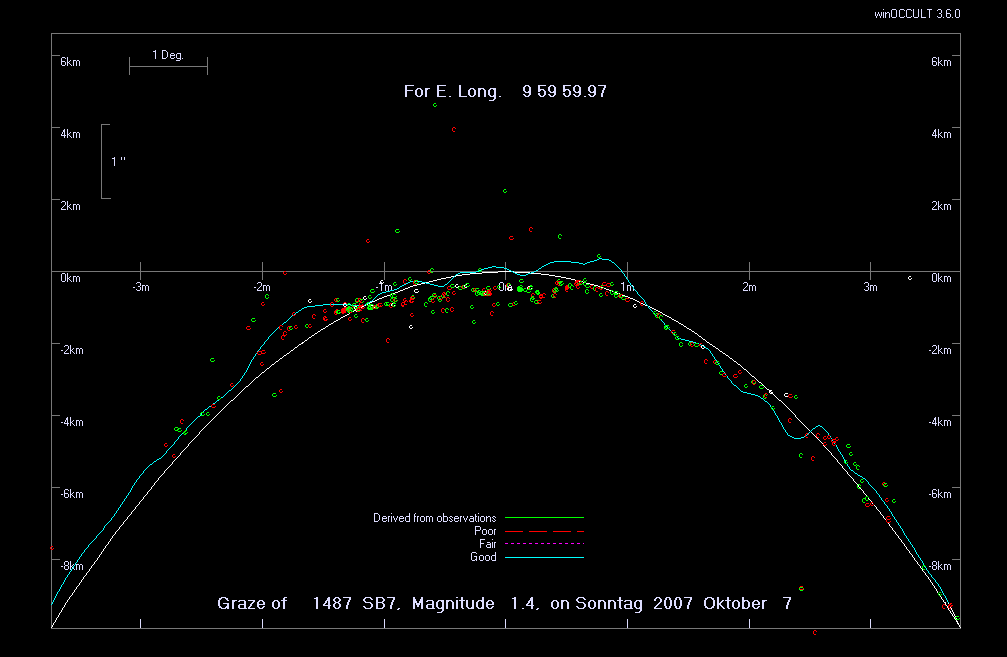

Graze profile
of contact limb
Grazing path

Graze calculations with software Occult

Interactive Map of Graze Path - calculated for nominal height of 0m (WGS84)

This is a beta test (does not work on all browsers) using GOOGLE Maps, coding by Geoff Hitchcox. Kiwi Geoff, Christchurch, New Zealand.
Zoom in and out with control at left of map. You can "drag" map by holding down left mouse button.
Double-clicking will center map at tip of mouse pointer, the lat/lon and perpendicular distance from graze limit line is then given beneath map.

Green = Graze limit line.
Gray = User defined offsets to limit line to delineate graze "zone".

#### Handy HINT #### If you are using dialup and not all tiles load on the map, press the "-" pad on the zoom control (left side of map) then one second later press the "+" pad. This will take you back to the same zoom setting, but reload any tiles that are missing. ENJOY!

Positive offset values are NORTH of limit line, negative values are SOUTH of limit line.

To set gray offset line A (in km perpendicular to GREEN limit line), edit this box then
To set gray offset line B (in km perpendicular to GREEN limit line), edit this box then
