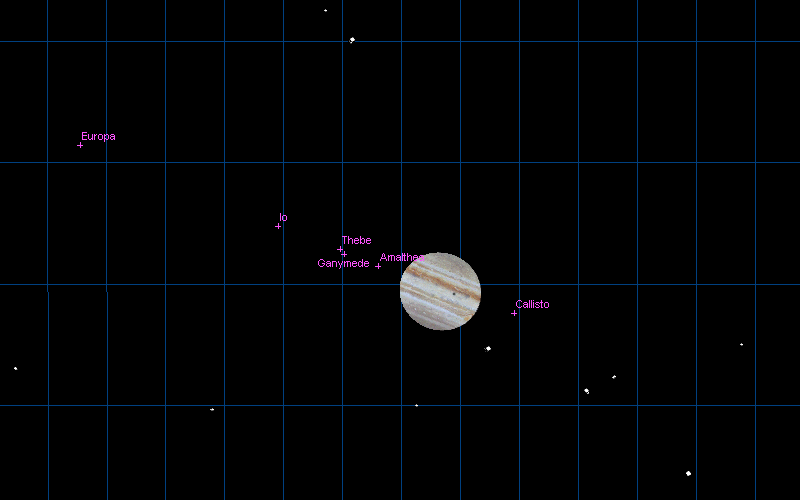

Jupiter system - 2009/05/26

Starmap created with Guide 8 from Bill J Gray.

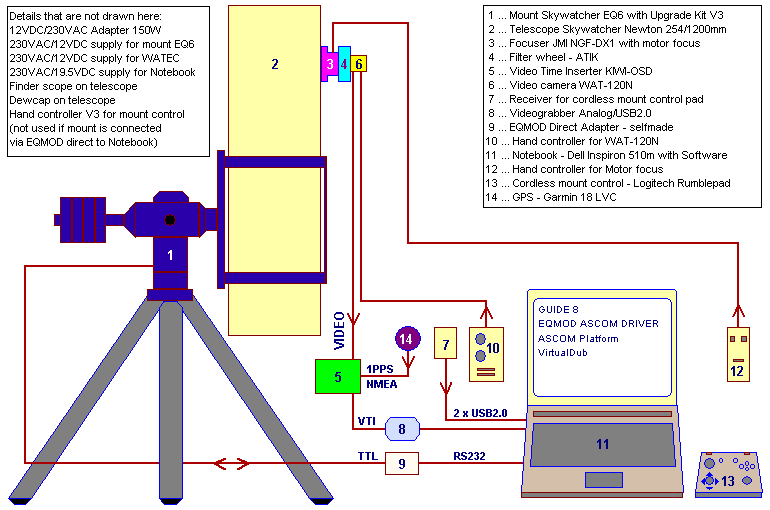

The setup for eclipse recording

CCIR (PAL) full size video image 768x576

Limovie settings

MUTUAL ECLIPSE - REPORT

MUTUAL ECLIPSE - REPORT
EAON & IOTA-ES
EUROPEAN ASTEROIDAL OCCULTATION NETWORK
INTERNATIONAL OCCULTATION TIMING ASSOCIATION EUROPEAN SECTION

1.DATE: 2009/05/26

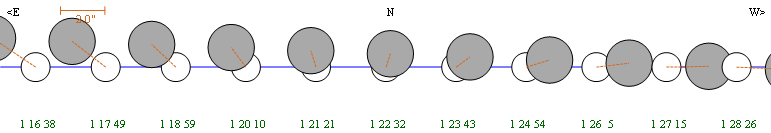

Event: Jupiter system 1E4; Io (I) eclipsed Callisto (IV)

2.OBSERVER:
Name: Gerhard Dangl
Phone: ++43-(0)2842-53908
Address: AUSTRIA, A-3830, Nonndorf 12
E-mail: gerhard@dangl.at

3.OBSERVING STATION:
Nearest city: Waidhofen/Thaya
Latitude:  N 48 47 13.4 (WGS84)
Longitude: E 15 14 08.3 (WGS84)
Altitude:  596m         (WGS84)
Single/Multiple: Single

4.TIMING OF EVENTS:
Type of event:
"S"tart observation; "I"nterrupt-"s"tart; "D"isappearance;
"B"link; "F"lash; "E"nd observation; "I"nterrupt-"e"nd;
"R"eappearance; "O"ther (specify)

Recording time HH:MM:SS UTC
S:    01:14:56
E:    01:30:12

5.TELESCOPE:
Type: Newton
Focal length: 1200mm
Aperture: 254 mm
Magnification: video/primary focus/FOV 18.3'x13.7' (768x576, 1.43"x1.43" per pixel)
Mount: Equatorial
Motor drive: Yes

6.TIMING & RECORDING:
Timekeeping: GPS 1PPS Garmin 18x LVC + KIWI-OSD
Sensor/Camera: WAT-120N, CCIR, 1/2" Sony CCD-Sensor ICX419ALL, GAMMA=OFF (linear)
Mode of recording: It=20ms (50 Img/s), Video CCIR, AVI, YUY2, Huffyuv,
Device of recording: TIS DFG/USB2-lt Videograbber USB2.0, Notebook Harddisk
Time insertion: KIWI-OSD

7.OBSERVING CONDITIONS:
Atmospheric transparency: fair
Wind:No
Object image stability: fair
Temperature: 286 Kelvin (+13 deg Celsius)

8.ADDITIONAL COMMENTS:
Object height above local horizon at recording start: 13 deg
Object height above local horizon at recording end:   15 deg

Only Clear glass filter (Astronomik) for CCD protection was used.

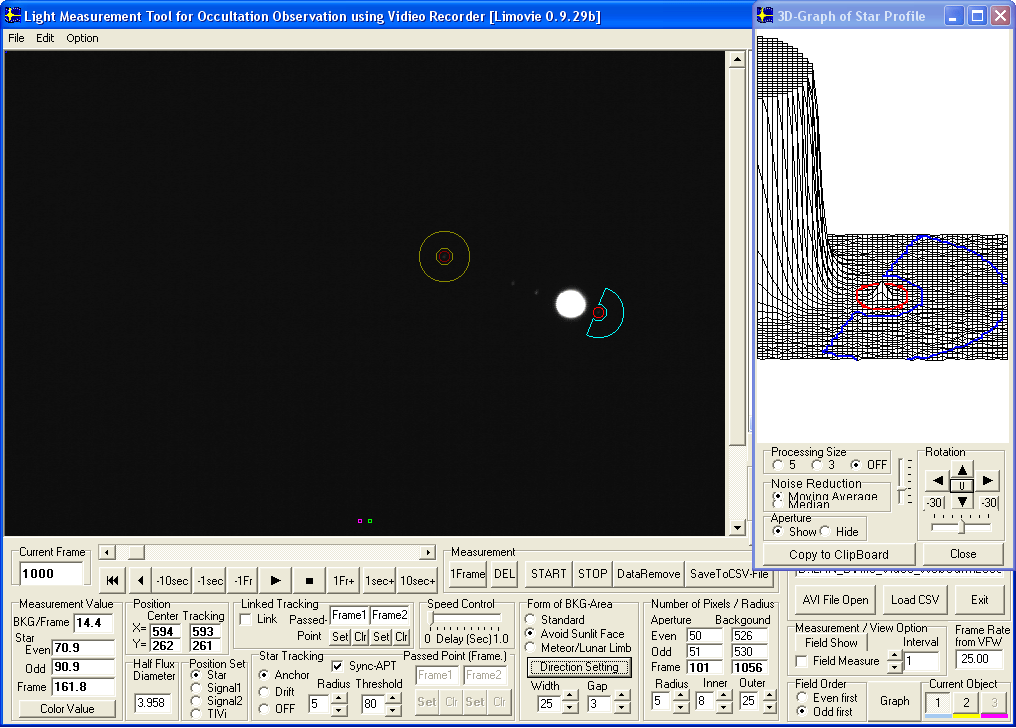

Video evaluation accomplished with VirtualDub1.8.6, AviSynth2.5,
Limovie0.9.29b, LimovieAverage and Excel

3-D Position and timing
Garmin GPS18x LVC
Receiving 08 satellites
Horizontal Dilution of Precision 1.2
Geoidal separation 44.5m (Altitude 551.7MSL + 44.5 = 596.2m in WGS84 datum)

Gerhard Dangl
gerhard@dangl.at
www.dangl.at/

The evaluation of the measurement data

The evaluation of the measurement data from recorded video was done with the software packages below:

-VirtualDub
-Limovie
-Avisynth
-LimovieAverage
-Help text, using LimovieAverage with mutual events

Download of measurement data and results in Excel file format

-Excel File, raw data, 25 measurement points per second (4.96 MB)

-Excel File, binning 8 data points (844 KB)

-Excel File, binning 16 data points (548 KB)

-Excel File, binning 32 data points (400 KB)

-Excel File, binning 64 data points (327 KB)

-Excel File, binning 128 data points (289 KB)

The diagrams from the Excel files in overview

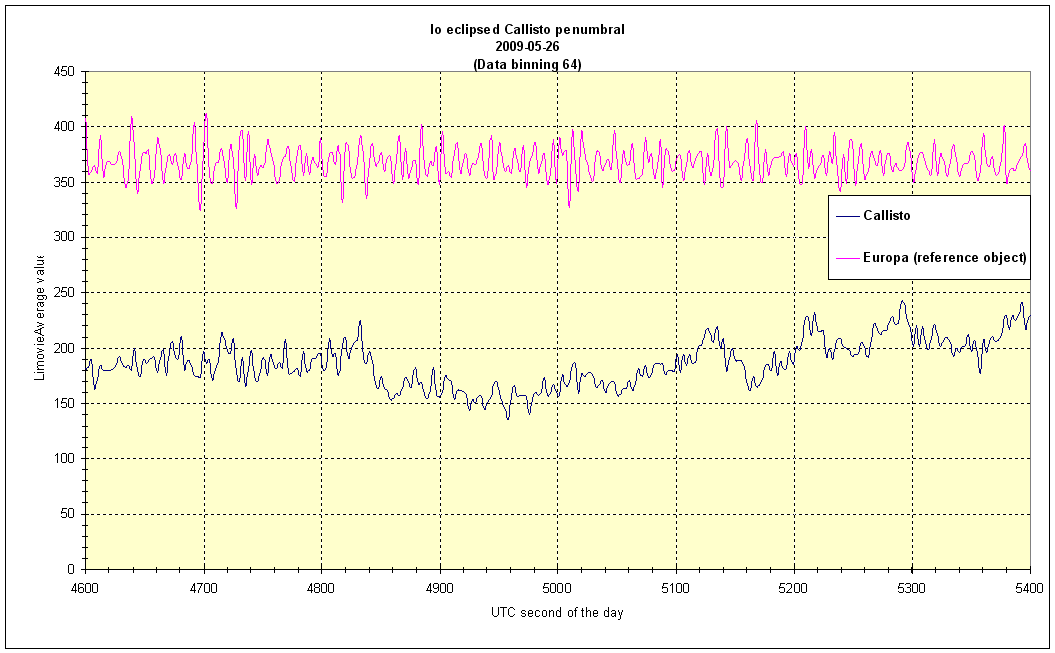

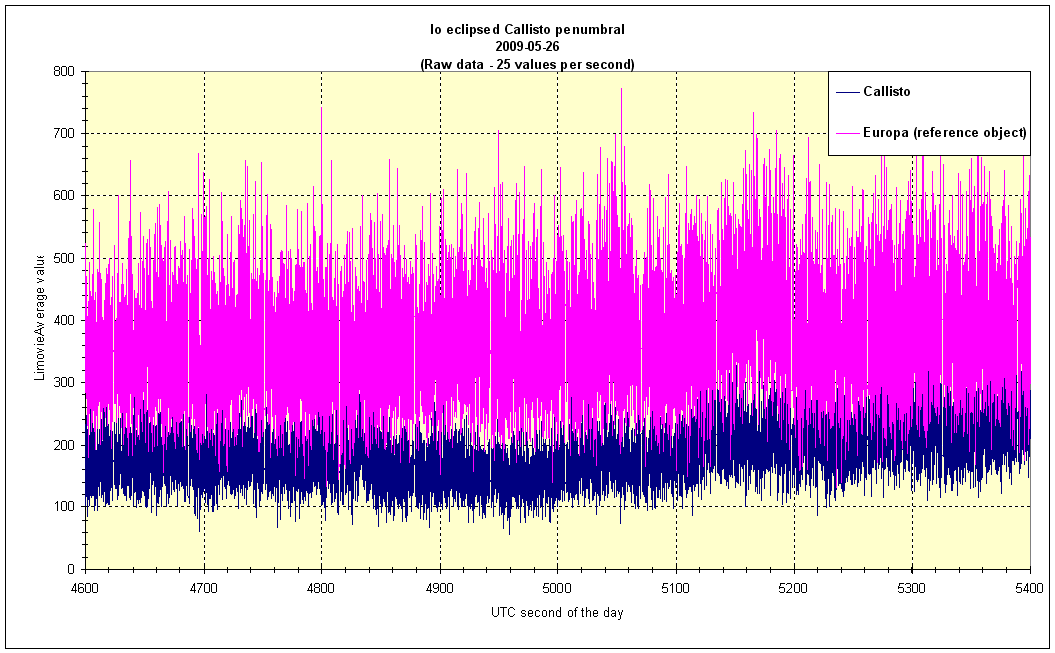

-Diagram raw data, 25 measurement points per second

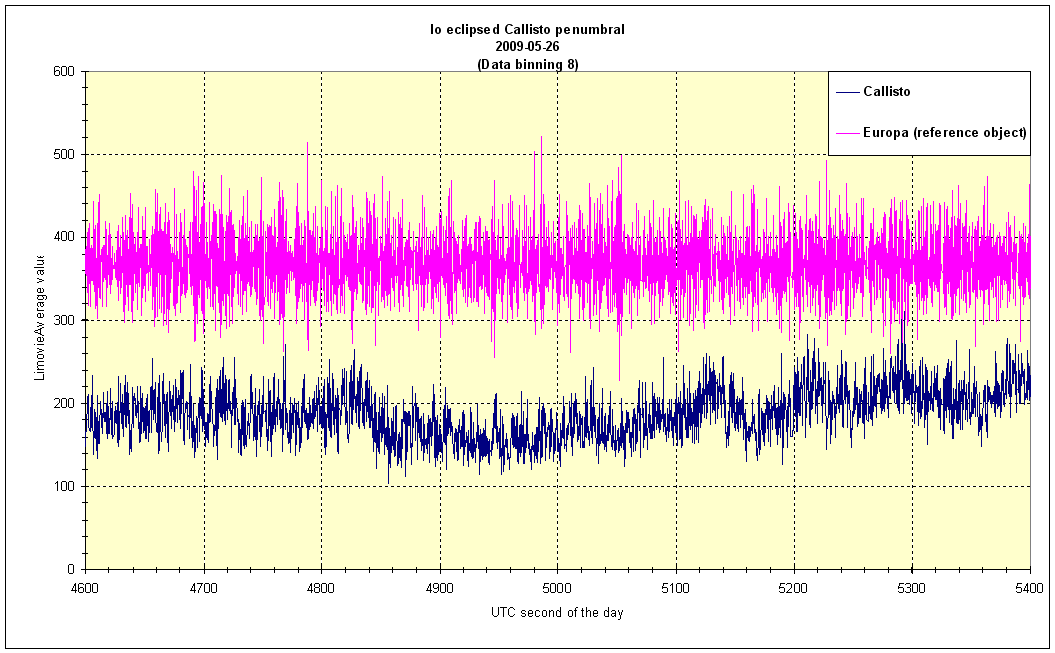

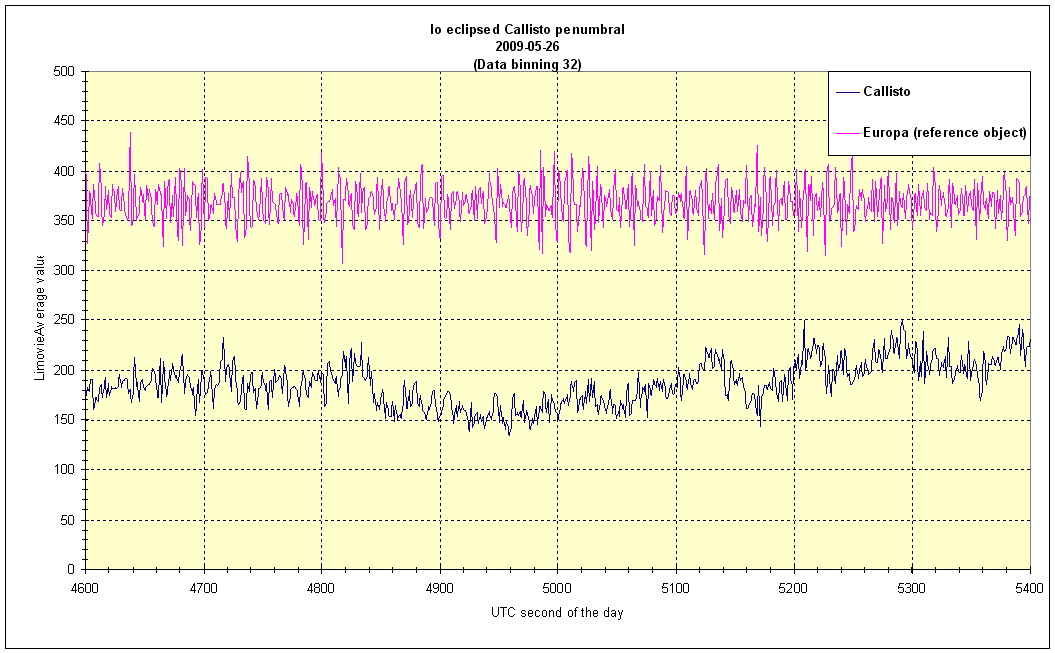

-Diagram binning 8 data points

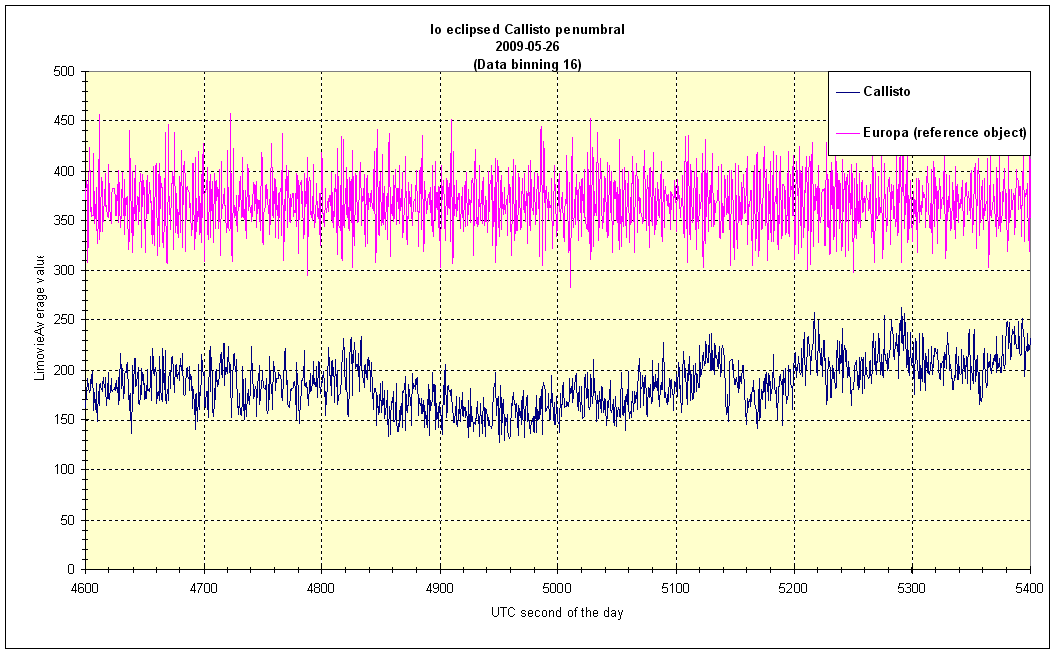

-Diagram binning 16 data points

-Diagram binning 32 data points

-Diagram binning 64 data points

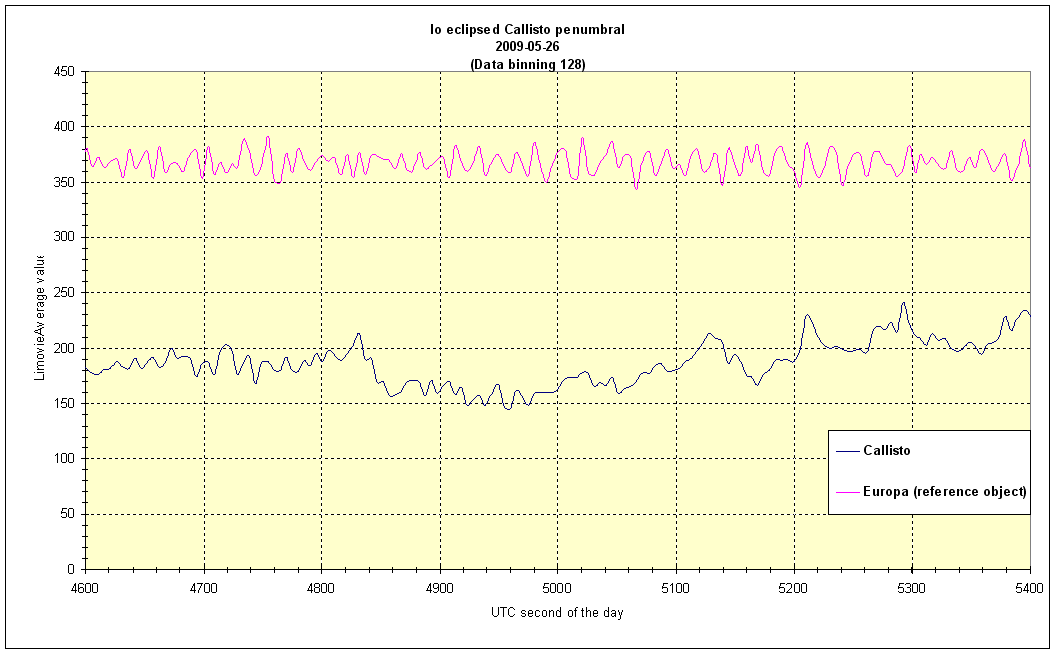

-Diagram binning 128 data points
